Printhead	KM1024i-13PL 8 Heads	KM1024i-30PL 8 Heads	KM1024i-30PL 4 Heads	KM1024i-30PL 8 Heads	KM1024i-30PL 4 Heads
High speed mode	540X360dpi 2pass 220sqm/h	480X360dpi 1pass 480sqm/h	480X360dpi 1pass 240sqm/h	480X360dpi 1pass 230sqm/h	480X360dpi 1pass 110sqm/h
Standard mode	540X720dpi 3pass 150sqm/h	480X720dpi 2pass 260sqm/h	480X720dpi 2pass 130sqm/h	480X720dpi 2pass 160sqm/h	480X720dpi 2pass 80sqm/h
High-qualty mode	540X1080dpi 4pass 120sqm/h	480X1080dpi 3pass 174sqm/h	480X1080Dpi 3pass 80sqm/h	480X1080dpi 3pass 120sqm/h	480X1080dpi 3pass 60sqm/h
Ink Color	● ● ● ●	● ● ● ●	● ● ● ●	● ● ● ● ● ●	● ● ● ● ● ●

PARAMETERS OF THE MACHINE
Print Control
Print Technology	Industrial Piezoelectric inkjet
Ink Types	Solvent Ink
RIP Software	6.0 (Photoprint, Onyx) Maintop (Optional Photoprint, Onyx)
Colour Configuration	CMYK
Operating System	Win7/10 64bits
Image Format	TIFF/JPEG/EPS/PDF
Printhead Height	2~8mm Above Media Adjustable
Media Type	Vinyl, Flex, Polyester, Back-lit Film, Window Film, etc.
Media Standard	Maximum Media With 5300mm (10.8ft)
Printing Width	5300mm
Media Transmit	I Media Feeding System (Max Media Weight 120kg)
Printing Dry System
Heating & Drying System	Equipped (Infrared Ray + Fan Drying)
Interfaces
Data Interface	Hi-Speed USB 2.0
Power Supply	AC220V, 50Hz$\pm$10%, UPS is required
Maximum Power	3500W + 9000W (Dryer)
Access Parameter	AC220V, 50HZ/60HZ
Working Conditions
Humidity	$60\% \sim 70\%$
Temperature	$0\% \sim 40\%$
Specification
G.W/N.W	3200KG/2700KG
Package Dimension	$760^115^185\text{CM}$

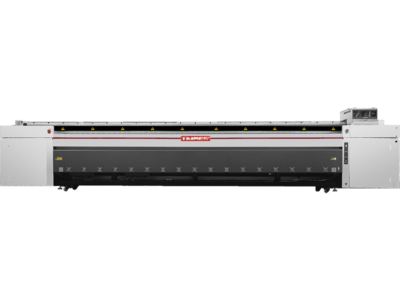

TAIMES T540 HIGH SPEED INDUSTRIAL LARGE FORMAT PRINTER
